Description
As many of you are aware we launched a new update for our Blueghozt App! You can now control multiple units and import and export configurations! If you are experiencing issues, please try reinstalling the app first. There is a permission change the new version needs, so please make sure Bluetooth and GPS/location are enabled and have permissions in the app!
- This is our newest product. It is compatible with both iOS and Android devices via Bluetooth and works with (Flow Series / Neoprism /Neopixel / ) addressable LEDs. Works with both 5V or 12V versions of addressable LEDs.
- Features Fully custom animation capabilities + turn signal + running lights/drl functionality for the ultimate flow series lighting experience.

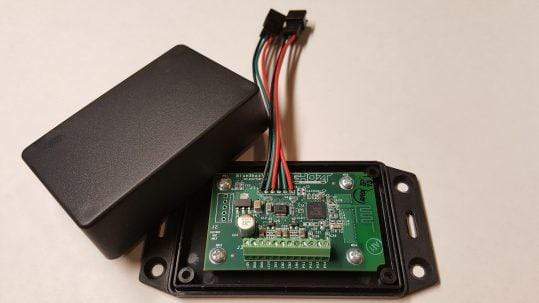

- This product is far easier to install compared to original Ghozt modules. Connectors are included which plug and play with our flow series kits and many off-the-shelf addressable LED kits. Screw terminals are included on the board for solder-less connections.
Specifications
- Four 12v inputs, for left turn, right turn, park, and brake
- Controls two chains of addressable LEDs up to 350 each! (260 for RGBW)

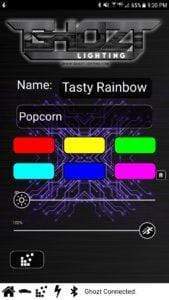

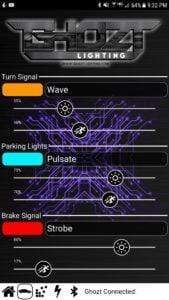

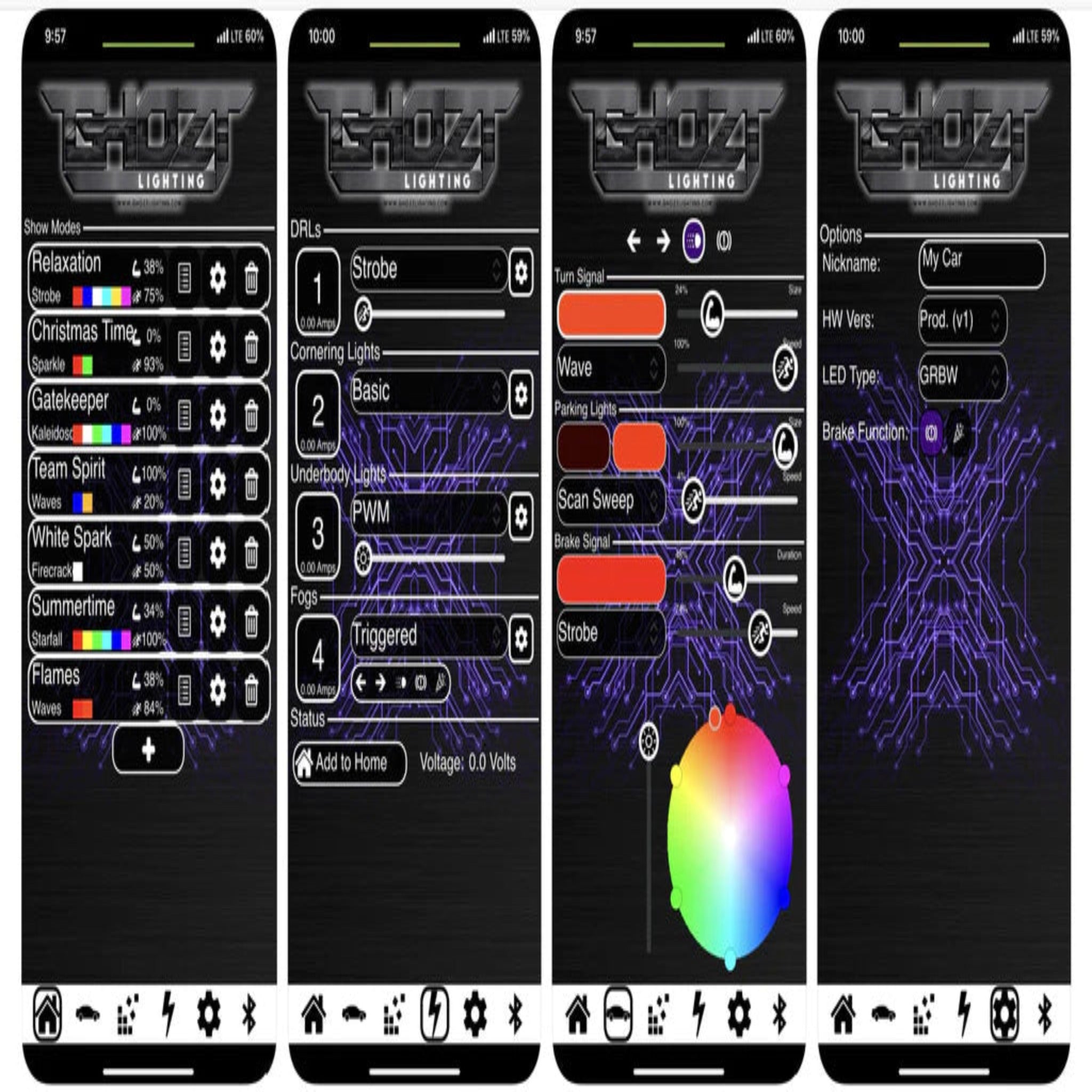

- Fully configurable through Bluetooth with our iOS/Android app!
- New features delivered over the air through our app updates!
- Sequential turn signals
- F1-style braking
- Parking/running lights
- Show modes triggered via Bluetooth
- One module controls two turn signals!
- Unlimited fully customizeable show modes can be saved with our app
- Adjustable turn signal timing to car’s flasher unit
- Very low power drain while in operation, sleep mode when idle
- Small form factor!
- Includes a protective plastic housing!
App Guide: BlueGhoztApp-UserGuide_22Jan2018
Wire Yourself Guide: BlueGhozt_v1-InstallGuide_22Jan2018
Product compatibility
- 5v: Grille lights, DRL Boards, Engine Bay lights, Halos, Halo kits (can combine multiple products on 1 controller up to 8 outputs)
- 12v: Led wheel lights (will need 1 controller per product)
Installation
Installation Time: 1-2 hours
Tools Needed: Basic Toolset
Install Guide: Blueghozt controller Wiring
Please put in order notes
how many outputs needed on the controller (or the products you are needing to power)
Warranty
The Blueghozt controller features a 1-year manufacturer's Warranty. Warranty is only applicable on the prewired versions of this product.
